Our KSA process control system offers seamless solutions for controlling aggregate processing and loading systems to increase efficiency and optimise processes. Rely on modular technology for flexible operation and reliable operating processes.
Schüttgut

KSA process control system
for aggregate processing and loading systems

System visualisation KSA-VISU

KSA is a modular process control system for manual and automatic control of processes in the gravel plant. It consists of the KSA-DV management software and the KSA-VISU plant visualisation system.
Thanks to its modular structure, it enables the production of a system control that is precisely customised to your requirements. Only the hardware and software modules required for the production process to be controlled are put together.

The visualisation and operation of the system is implemented via an individually tailored process visualisation. During operation, the visualisation shows an overview with a schematic floor plan of the system. All relevant operating processes and system statuses, as well as an exact fault message display in plain text with time and date, are shown graphically. Thanks to the modular design of the system, additional units and system components can be retrofitted or modified at any time. The KSA-VISU also has a maintenance module with which all maintenance intervals can be controlled and recorded.
Each emergency stop and ripcord limit switch is displayed separately. When pressed, the corresponding lamp flashes and an error message appears as text. All error messages are saved in a file and can be sorted as required for later checking.

Simple operation of the system
Output of fault messages
Control times of the system individually adjustable
Operating hours counter for all drives
integrierte Sandfeuchtemessung

Maintenance module

Every motor, every valve and every limit switch can be monitored. When a predefined condition is reached, a message appears in plain text, which is saved in a file for later processing.
Operating time
E.g. change the gear oil after 500 operating hours of the crusher. The current operating time is always displayed.
Switching cycles
For example, retighten the screws after 200 switching cycles. The current number of switching cycles is always displayed.
One-off - E.g. E.g. full report silo; periodic time - e.g. every 14 days; absolute time - e.g. 14 May 2025. E.g. 14 May 2025

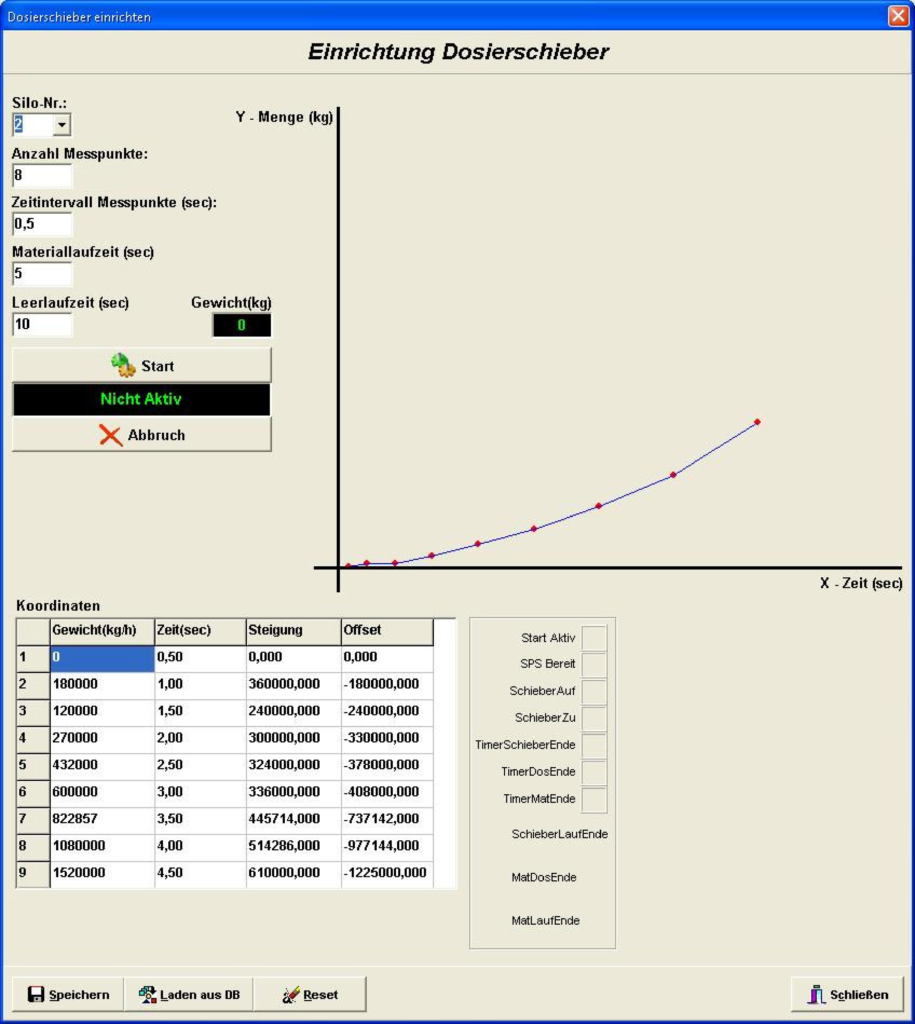

Automatic set-up operation of the dosing slides

By entering the number of measuring points and the time intervals with material running time, the slider is opened by pressing the start button, the material flow on the belt weigher is measured and the dosing curve of the dosing slider is automatically determined and saved.
The individual measurement results are displayed in tabular and graphical form.
The automatic setup of the dosing slides can be repeated as often as required.
Dosierschieber einrichten

Management module KSA-DV

Order processing

Order processing of main orders and pre-planned orders
Order processing according to article allocation table
Selection of orders from article allocation table
Delivery note reprint available as standard
Order list with output to printer or screen
Deletion of orders after order completion, individually selected or over an adjustable time in days (max. 9 999 days)

Recipe management

Input of recipes according to types, components, target values, etc.
Recipe-related overrun correction
Recipe-related preflow correction to ensure uniform material carpet formation

Master data management

Management of customer addresses with name, city, street, telephone, comment and blocking indicator, retrievable via customer number or search term
Management of construction site data with assignment to the customer
Management of vehicle data including load quantity, vehicle licence plate number, driver names, chamber administration, etc.

Statistics

All statistics can be output in freely selectable time windows
Loading statistics with target/actual comparison with difference calculation
Customer statistics, construction site statistics, vehicle statistics
Loading protocols: selection option for each individual loading with order data, display of all dosed components with target quantity and total actual quantity
LOG file All processes on the system are recorded and written to a LOG file.
This LOG file can be viewed on the screen or output to the printer.

Additional features

Password protection of the system: A password is stored for each system user.
Each system user can be given access to the programme components.
Post-processing of delivery notes
Protocol printout from database - no need to run a protocol printer
All logs can be saved on external data carriers: CD-ROM, USB stick, network server
Language switchable at the touch of a button (if delivered in a foreign language)
Logging of all operator functions and system errors for later inspection of the system
Data export in ASCII or Excel format for subsequent data preparation with Excel
SQL Server
Data backup via network connections
